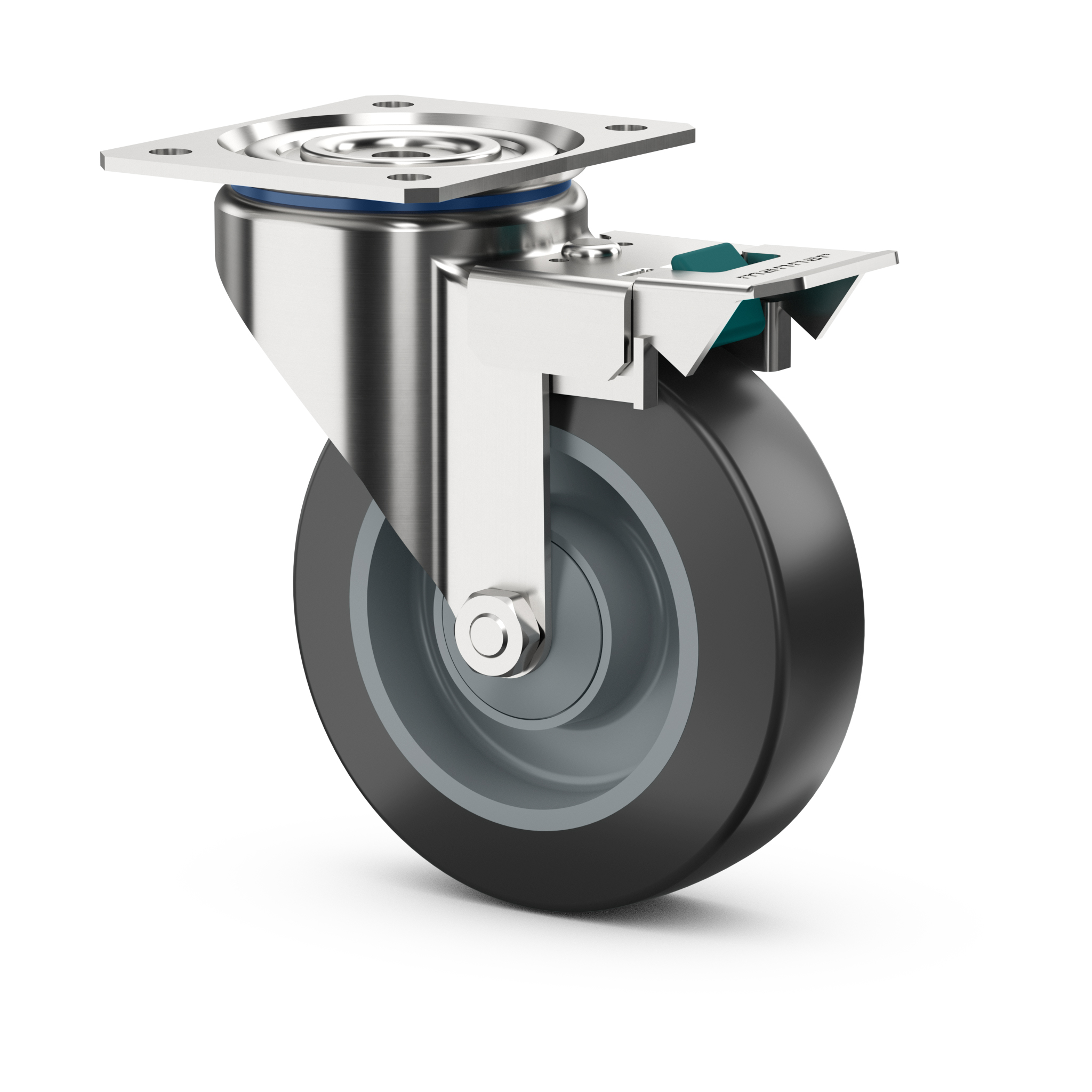

LKE-J-125 NEK/K
400414
| Product type: | Swivel castors with brake |
| Product group: | Medium-duty castors |
Users have been impressed by the functionality and durability of Manner's castors for logistics and industrial uses. With their extra-strong structure, they are long-lasting and ideal for continuous heavy-duty use.
Download the product card
Technical data
Wheel diameter (mm):
125
Hardness of the tread (shore A):
60
Wheel width (mm):
40
Centre material:
Polyamide
Load capacity (kg):
145
Bearing type:
Ball bearing
Overall height (mm):
157
Fitting:
Rectangular top plate
Swivel radius (mm):
110
Weight (kg):
1.288
Fork material:
Steel
Plate length x width (mm):
105X85
Hole centres length x width (mm):
80X60
Fastening hole diameter (mm):
9
Tread material:
Elastic solid rubber
Brake type:
Total-stop brake
Brake control:
Individual
