LKE-J-160/40 PK L
401661
| Product type: | Swivel castors with brake |
| Product group: | Medium-duty castors |
Users have been impressed by the functionality and durability of Manner's castors for logistics and industrial uses. With their extra-strong structure, they are long-lasting and ideal for continuous heavy-duty use.
Download the product cardHI-RES
Technical data
Wheel diameter (mm):
160
Hardness of the tread (shore A):
85
Wheel width (mm):
40
Centre material:
Polypropylene
Load capacity (kg):
135
Bearing type:
Plain bearing
Overall height (mm):
191
Fitting:
Rectangular top plate
Swivel radius (mm):
140
Weight (kg):
1.92
Fork material:
Steel
Plate length x width (mm):
135X110
Hole centres length x width (mm):
105X80
Fastening hole diameter (mm):
10
Tread material:
Solid-rubber
Brake type:
Total-stop brake
Brake control:
Individual
More similar products
LKE-J-200/50 PK L
401664
| Product type: | Swivel castors with brake |
| Product group: | Medium-duty castors |
200
50
240
205

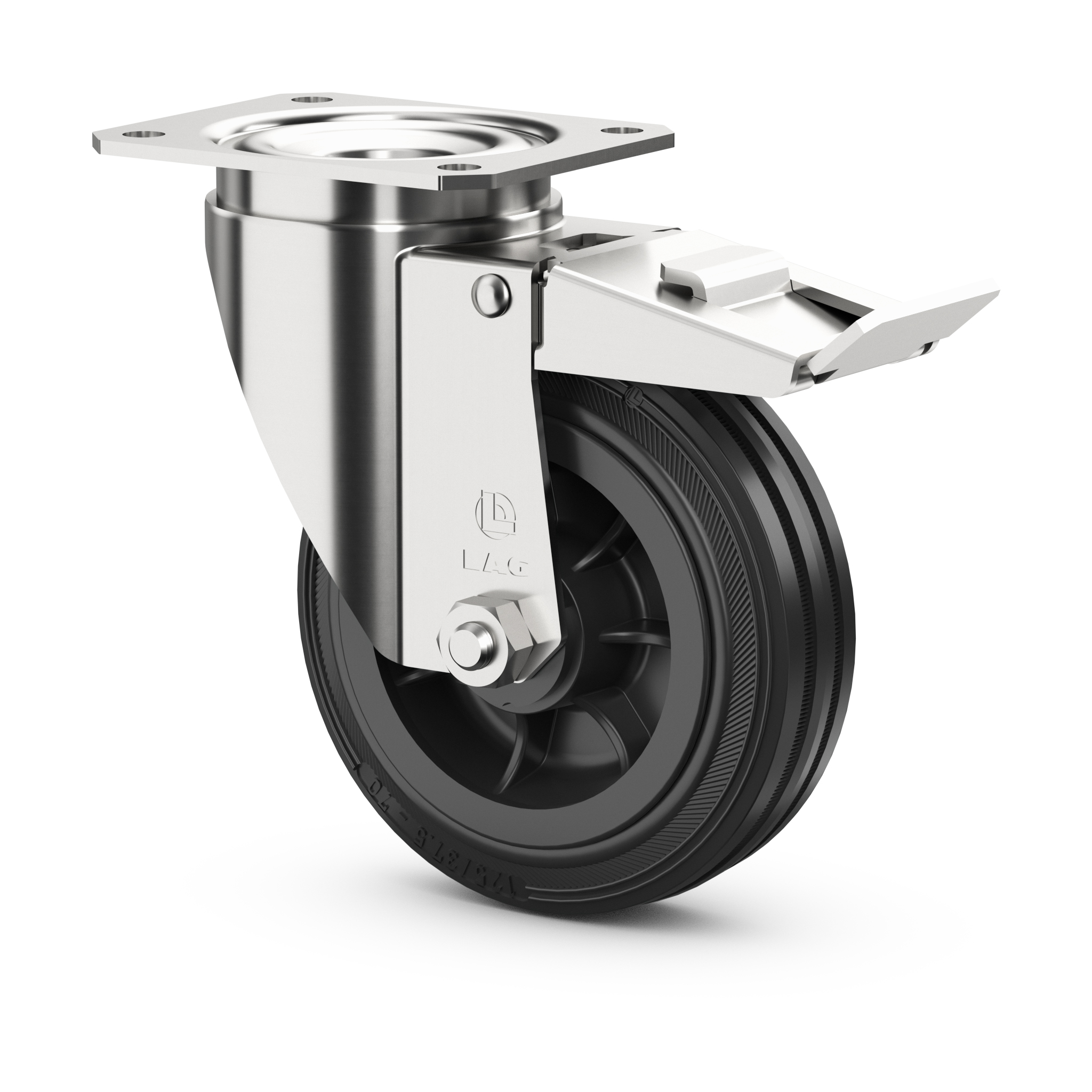

LKE-J-125 PK L
