TW-J-S-75 GP/K H
305295
| Product type: | Swivel castors with brake |
| Product group: | Twist |

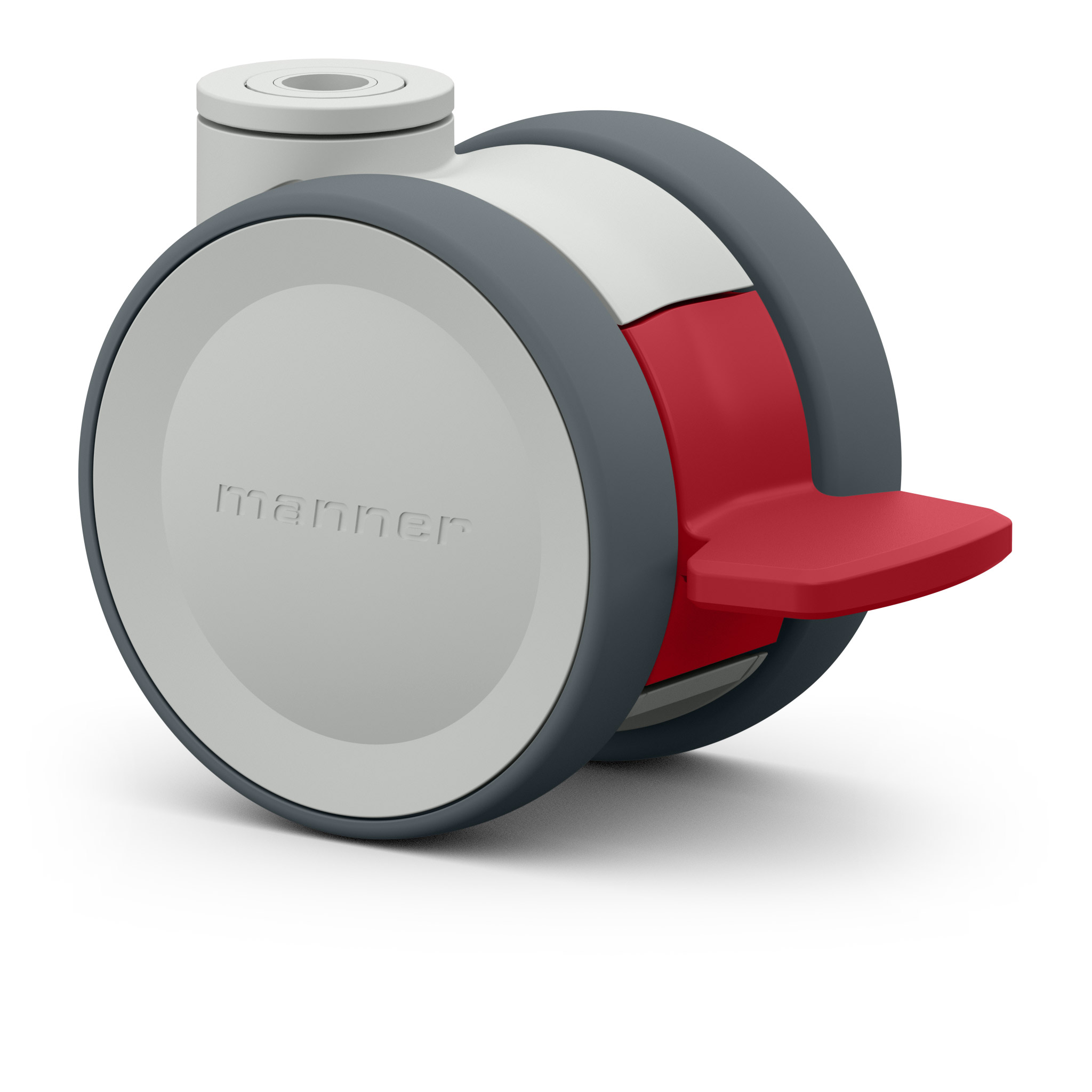

The high-quality Twist twin wheel castor is load-bearing and very sturdy yet easy to manoeuvre. Its special feature is the intuitive brake pedal, which clearly shows the status of the locking system and is easy to use. Two different heights make it easier to meet customer- and device-specific requirements. The timeless and clinical appearance of the Twist castor looks hygienic and high quality. The standard colour of the castor is light grey (RAL 7035) with a red pedal. Customer-specific and special colours are also available for orders of larger quantities.
Download the product cardTechnical data
Wheel diameter (mm):
75
Hardness of the tread (shore A):
95
Wheel width (mm):
15
Centre material:
Polyamide
Load capacity (kg):
95
Bearing type:
Ball bearing
Overall height (mm):
80
Fitting:
Bolt hole
Swivel radius (mm):
85
Bolt hole diameter (mm):
10
Weight (kg):
0.2565
Fork material:
Plastic
Tread material:
Polyurethane
Brake type:
Single action brake
Brake control:
Individual
Color:
Light grey
