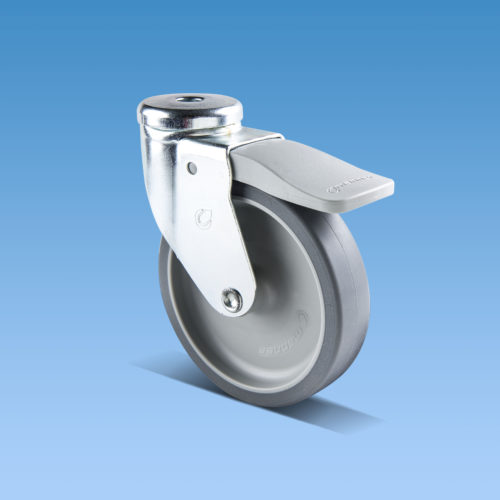

Kevyt kalustepyörä E-J-100 PTE
Kevyt kalustepyörä E-J-100 PTE

E-J-100 PTE

200309

Product type: Swivel castors with brake
Product group: Equipment castors

Manner’s equipment castor selection offers a diverse range of high-quality, durable and smooth running castors. The castors are designed to have a structure that is both durable and stylish. They are also highly reliable and safe. The forks are made of galvanised steel, and there is a variety of wheel options available depending on the application and operating conditions. The castors are available with a single action brake or total-stop brake, depending on the model.

Technical data

Wheel diameter (mm):
100
Hardness of the tread (shore A):
80
Wheel width (mm):
23
Centre material:
Polypropylene
Load capacity (kg):
50
Bearing type:
Plain bearing
Overall height (mm):
125
Fitting:
Bolt hole
Swivel radius (mm):
95
Bolt hole diameter (mm):
10
Weight (kg):
0.292
Fork material:
Steel
Tread material:
Thermoplastic rubber
Brake type:
Single action brake
Brake control:
Individual
