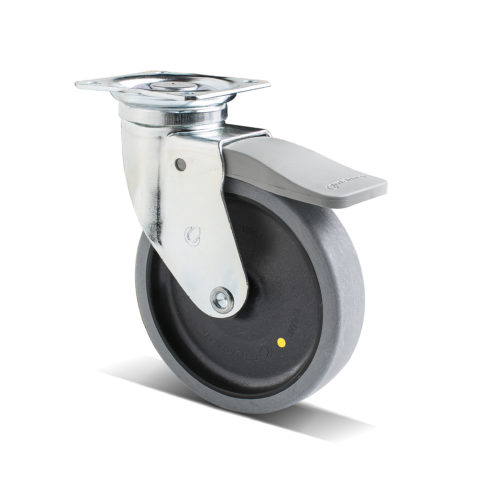

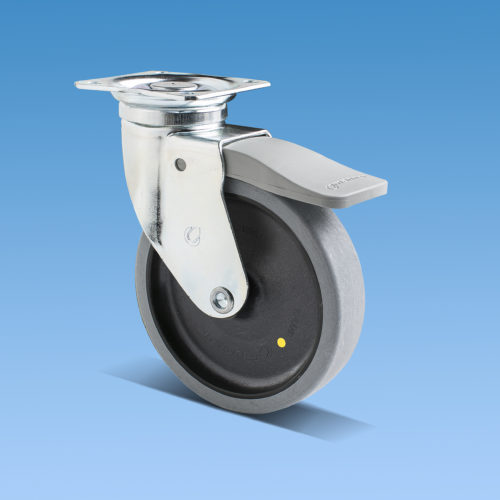

EL-J-75 PTE A
EL-J-75 PTE A

EL-J-75 PTE A

Code: 200331
Product type: Swivel castors
Product group: Light equipment castors — E

Our light equipment castors offer quiet and vibration-free operation, low starting and rolling resistance, and striking design.

Downloadable model images

Wheel diameter (mm):
75
Hardness of the tread (shore A):
90
Wheel width (mm):
23
Centre material:
Conductive polypropylene
Load capacity (kg):
50
Bearing type:
Plain bearing
Overall height (mm):
105
Fitting:
Rectangular top plate
Swivel radius (mm):
95
Weight (kg):
0.322
Plate length x width (mm):
60X60
Hole centres length x width (mm):
45X45
Fastening hole diameter (mm):
6.5
Tread material:
Conductive thermopl. rubber
Brake type:
Single action brake
Brake control:
Individual
